DIY CNC Build Kit for HTMCNC Aluminum CNC Router
Any shipping charges and applicable checkout taxes are shown before you pay. Delivery estimates are not guaranteed.
A HOW TO MECHATRONICS PROJECT
Build your own aluminum HTMCNC router.
Motion and structural components for the all-aluminum upgrade of the original HTMCNC design. Explore the machine and its build.
- Follow the original aluminum upgrade guide and parts list.
- Components supplied individually for DIY assembly.
- Aluminum plates and bars sold separately.
Watch the project build. This kit contains unassembled components.
IN THE BOX
Included in your kit
- Frame: aluminum profiles and corner brackets.
- Motion: HGR15 rails, HGH15CA blocks and SFU1605 ball screws with nuts.

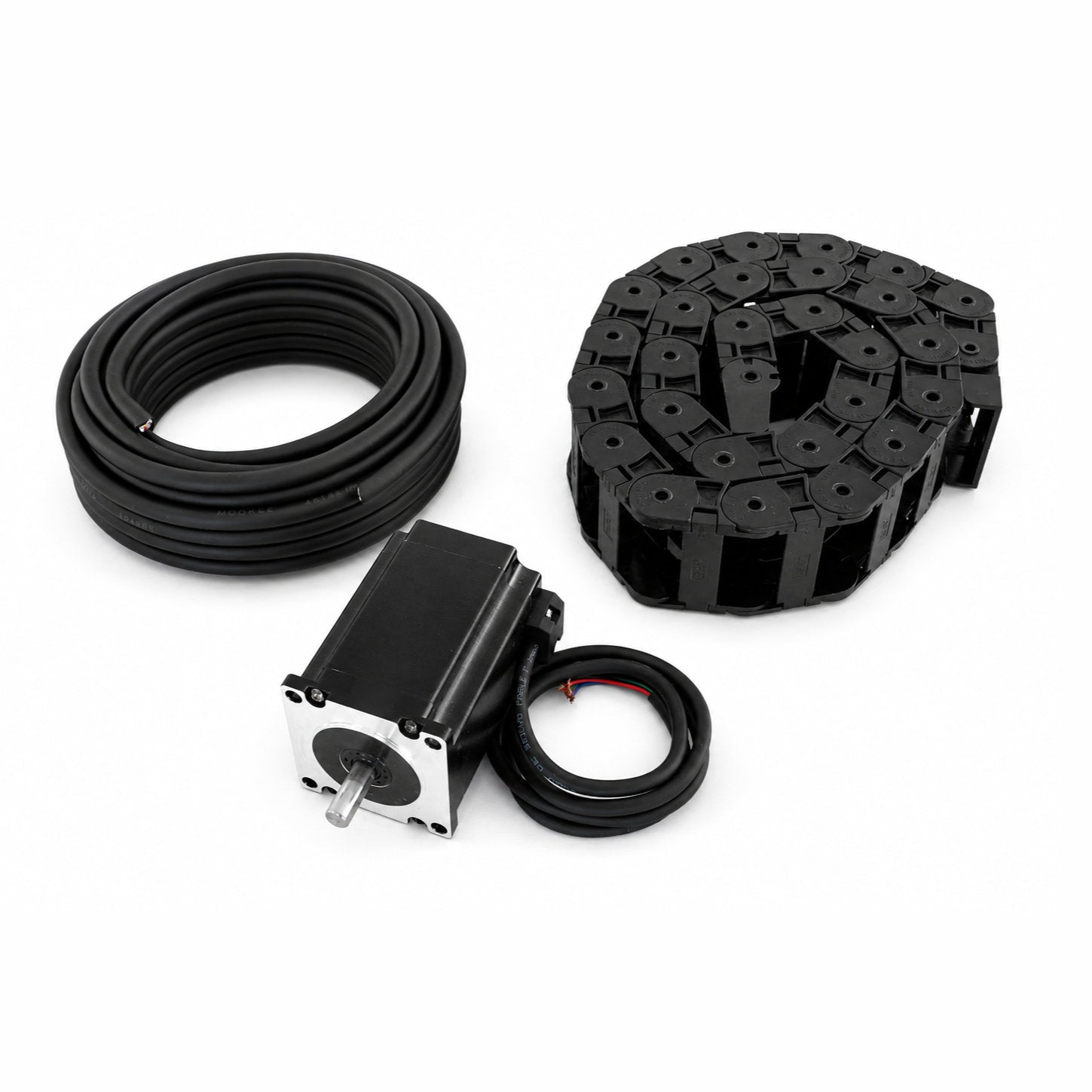

- Drive: NEMA23 motors, couplings, ball-screw support units and locknuts.
- Cable management: drag chains and shielded motor/signal cables.
- Assembly hardware: appropriate bolts, nuts and sliding T-slot nuts.
Specifications & parts for your selected size
Parts for 450x350mm
- 1x SFU1605 ball screw with nut — 600 mm
- 2x SFU1605 ball screws with nuts — 500 mm
- 1x SFU1605 ball screw with nut — 300 mm
- 4x HGR15 linear rails — 600 mm
- 2x HGR15 linear rails — 300 mm
- 2x 2080 aluminum profiles — 600 mm
- 3x 2040 aluminum profiles — 600 mm
- 2x 2040 aluminum profiles — 700 mm
- 2x 2040 aluminum profiles — 200 mm
- 2x 2040 aluminum profiles — 100 mm
- 4 pairs — BK/BF ball-screw support units
- 4x shaft couplings — D20L30, 8–10 mm
- 4x M12 × 1 locknuts
- 12x HGH15CA bearing blocks
- 4x NEMA23 motors — 3 A, 8 mm shaft
- 2x 15 × 30 mm semi-enclosed drag chains — 1 m each
- 10 m — 18 AWG, 4-core shielded cable
- 10 m — 22 AWG, 2-core shielded cable
- 3x limit switches
- Appropriate assembly bolts, nuts, corner brackets and sliding T-slot nuts included.
Parts for 450x750mm
- 1x SFU1605 ball screw with nut — 600 mm
- 2x SFU1605 ball screws with nuts — 900 mm
- 1x SFU1605 ball screw with nut — 300 mm
- 2x HGR15 linear rails — 600 mm
- 2x HGR15 linear rails — 1,000 mm
- 2x HGR15 linear rails — 300 mm
- 2x 2080 aluminum profiles — 1,000 mm
- 4x 2040 aluminum profiles — 600 mm
- 2x 2040 aluminum profiles — 700 mm
- 2x 2040 aluminum profiles — 200 mm
- 2x 2040 aluminum profiles — 100 mm
- 4 pairs — BK/BF ball-screw support units
- 4x shaft couplings — D20L30, 8–10 mm
- 4x M12 × 1 locknuts
- 12x HGH15CA bearing blocks
- 4x NEMA23 motors — 3 A, 8 mm shaft
- 2x 15 × 30 mm semi-enclosed drag chains — 1 m each
- 10 m — 18 AWG, 4-core shielded cable
- 10 m — 22 AWG, 2-core shielded cable
- 3x limit switches
- Appropriate assembly bolts, nuts, corner brackets and sliding T-slot nuts included.
TO COMPLETE YOUR BUILD
What you'll need separately
- Aluminum plates and bars for the aluminum HTMCNC design.
- CNC control box. Build your own with our DIY GRBL CNC Control Box Electronics Kit. Follow the Arduino/GRBL guide or watch the build video.
- Spindle or trim router.
Frequently asked questions
Is the machine assembled?
No. You receive unassembled kit components and follow the project tutorial.
Are the aluminum plates included?
No. The listing links to a separate aluminum plates and bars kit.
Are bolts included?
Yes. Appropriate assembly bolts, nuts, corner brackets and sliding T-slot nuts are included.
Which size should I choose?
Choose 450 × 350 mm or 450 × 750 mm above based on your space and intended projects. Confirm the parts required for that configuration in the BOM.
When will my kit arrive?
Delivery timing depends on the destination. Contact us for a destination-specific estimate.
Does this kit build the MK2 shown on the homepage?
No. The homepage features a newer MK2 design. This kit corresponds to the original aluminum CNC upgrade documented in the linked tutorial.
